Controlling turtlesim from Lisp

Description: In this tutorial you will learn how to control a turtle in turtlesim with CRAM Fluents

Next Tutorial: Implementing simple plans to move a turtle

In this tutorial we will re-use the package cram_beginner_tutorial that you have created in the previous tutorial. For controlling the turtle, we need to depend on the turtlesim package, since it contains the message definitions we will use. Further, we will want to use the communication functionality of ROS to talk to the turtlesim from inside Lisp, so we depend on roslisp. Finally, we will have to deal with poses. For that, we want to use the package cl_transforms and geometry_msgs, the latter one is only needed if you're working with Hydro or a newer ROS version.

Updating the dependencies

Updating ROS dependecies

catkin

Open package.xml from the root directory of your cram_beginner_tutorial package and add the lines

  <build_depend>roslisp</build_depend>
  <build_depend>turtlesim</build_depend>
  <build_depend>cl_transforms</build_depend>
  <build_depend>geometry_msgs</build_depend>

under <build_depend>cram_language</build_depend> and

  <run_depend>roslisp</run_depend>
  <run_depend>turtlesim</run_depend>
  <run_depend>cl_transforms</run_depend>
  <run_depend>geometry_msgs</run_depend>

under <run_depend>cram_language</run_depend>.

rosbuild

Open manifest.xml and add the lines

  <depend package="roslisp"/>
  <depend package="turtlesim"/>
  <depend package="cl_transforms"/>
  <depend package="geometry_msgs"/>

under <depend package=“cram_language”>.

Updating cram dependecies

Now open cram-beginner-tutorial.asd and update the system dependencies to include the system roslisp, turtlesim-msg, geometry_msgs-msg and cl-transforms. The systems that correspond to the messages of a package are always named like the package name with a -msg suffix. Your system should now look like this:

(defsystem cram-beginner-tutorial
  :depends-on (roslisp cram-language turtlesim-msg cl-transforms geometry_msgs-msg)
  :components
  ((:module "src"
            :components
            ((:file "package")
             (:file "tutorial" :depends-on ("package"))))))

Updating the Lisp Package

We also want to add roslisp and cl-transforms to our namespace in the file package.lisp so that we don't have to specify the namespace each time we use a function from that package in our code.

(defpackage cram-beginner-tutorial
  (:nicknames :tut)
  (:use #:cpl #:roslisp #:cl-transforms))

Writing the communication glue code

Now it's time to use roslisp to connect to turtlesim. Turtlesim creates one ROS topic namespace per turtle. For each turtle name (turtle1, turtle2, etc.) it publishes the pose of the turtle on a ~/pose topic, publishes the color value under the turtle (the background color) on a ~/color_sensor topic. For each turtle turtlesim subscribes to a ~/cmd_vel topic (or ~/command_velocity before hydro) waiting for commands to move the turtle. This is the topic through which we will be controlling our turtles from Lisp.

The code

Open the file tutorial.lisp and add the following code.

hydro

(in-package :tut)

(defvar *color-value* (make-fluent :name :color-value) "current color under the turtle")
(defvar *turtle-pose* (make-fluent :name :turtle-pose) "current pose of turtle")

(defvar *color-sub* nil "color ROS subscriber")
(defvar *pose-sub* nil "pose ROS subscriber")
(defvar *cmd-vel-pub* nil "velocity commands ROS publisher")

(defun init-ros-turtle (name)
  "subscribes to topics for a turtle and binds callbacks. `name' specifies the name of the turtle."
  (setf *color-sub* (subscribe (format nil "~a/color_sensor" name)
                               "turtlesim/Color"
                               #'color-cb))
  (setf *pose-sub* (subscribe (format nil "~a/pose" name)
                               "turtlesim/Pose"
                               #'pose-cb))
  (setf *cmd-vel-pub* (advertise (format nil "~a/cmd_vel" name)
                                 "geometry_msgs/Twist")))

(defun color-cb (msg)
  "Callback for color values. Called by the color topic subscriber."
  (setf (value *color-value*) msg))

(defun pose-cb (msg)
  "Callback for pose values. Called by the pose topic subscriber."
  (setf (value *turtle-pose*) msg))

(defun send-vel-cmd (lin ang)
  "Function to send velocity commands"
  (publish *cmd-vel-pub* (make-message "geometry_msgs/Twist"
                                       :linear (make-msg "geometry_msgs/Vector3"
                                                         :x lin)
                                       :angular (make-msg "geometry_msgs/Vector3"
                                                          :z ang))))

groovy and older

(in-package :tut)

(defvar *color-value* (make-fluent :name :color-value) "current color of turtle")
(defvar *turtle-pose* (make-fluent :name :turtle-pose) "current pose of turtle")

(defvar *color-sub* nil "color subscription client")
(defvar *pose-sub* nil "pose subscription client")
(defvar *cmd-vel-pub* nil "command velocity subscription client")

(defun init-ros-turtle (name)
  "subscribes to topics for a turtle and binds callbacks. `name' specifies the name of the turtle."
  (setf *color-sub* (subscribe (format nil "~a/color_sensor" name)
                               "turtlesim/Color"
                               #'color-cb))
  (setf *pose-sub* (subscribe (format nil "~a/pose" name)
                               "turtlesim/Pose"
                               #'pose-cb))
  (setf *cmd-vel-pub* (advertise (format nil "~a/command_velocity" name)
                                 "turtlesim/Velocity")))

(defun color-cb (msg)
  "Callback for color values"
  (setf (value *color-value*) msg))

(defun pose-cb (msg)
  "Callback for pose values"
  (setf (value *turtle-pose*) msg))

(defun send-vel-cmd (lin ang)
  "function to send velocity commands"
  (publish *cmd-vel-pub* (make-message "turtlesim/Velocity"
                                       linear lin
                                       angular ang)))

The code explained

In (defun init-ros-turtle …) we subscribe to the pose and the color sensor topic and create a function that can publish to the cmd_vel (or command_velocity in old ROS) topic. The topic clients are stored in global variables we defined before.

We use callback functions *-cb for all updates on the pose of the turtle and the color sensor value to a fluent in order to be able to use those values in a reactive control program.

A fluent is a proxy around a value with support for notification on change. Further, fluents can be combined to so-called fluent networks. There will be some more explanations about fluents later in this tutorial.

Experimenting in the REPL

Now let's try it out. Open your Lisp REPL and make sure that you loaded the system cram-beginner-tutorial and switched to the package tut, hint:

CL-USER> (ros-load:load-system "cram_beginner_tutorial" :cram-beginner-tutorial)
...
CL-USER> (in-package :tut)

For experiments in the REPL, we want to initialize a Lisp ROS node and then call init-ros-turtle.

Make sure roscore is running in a terminal. Else we cannot create ROS nodes.

Enter the following commands:

TUT> (start-ros-node "cram_tutorial_client")
[(ROSLISP TOP) INFO] 1292688669.674: Node name is cram_tutorial_client
[(ROSLISP TOP) INFO] 1292688669.687: Namespace is /
[(ROSLISP TOP) INFO] 1292688669.688: Params are NIL
[(ROSLISP TOP) INFO] 1292688669.689: Remappings are:
[(ROSLISP TOP) INFO] 1292688669.691: master URI is 127.0.0.1:11311
[(ROSLISP TOP) INFO] 1292688670.875: Node startup complete

The name of the node is arbitrary. We need to call start-ros-node before we can use the functions subscribe and advertise.

TUT> (init-ros-turtle "/turtle1")

This calls our function init-ros-turtle, with the name that the turtlesim uses for the first turtle spawned.

Now we should start up turtlesim in a new terminal:

$ rosrun turtlesim turtlesim_node

(Note: if you're using turtlesim for the first time, you might need to compile the package first: $ rosmake turtlesim.)

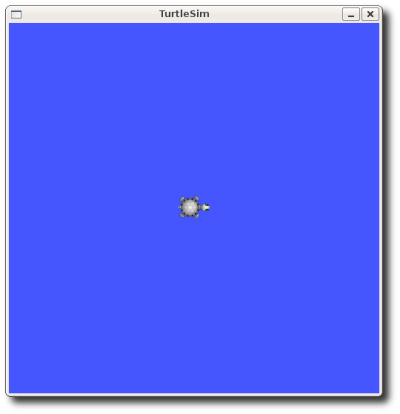

You will see the turtlesim window:

Notice that thanks to ROS, we could subscribe to the topics even before they had been advertised by the turtlesim.

We are ready for experiments now. Let's see if the fluents are containing the right values:

TUT>  (value *turtle-pose*)
[TURTLESIM-MSG:<POSE>
   X:
     5.55555534362793d0
   Y:
     5.55555534362793d0
   THETA:
     0.0d0
   LINEAR_VELOCITY:
     0.0d0
   ANGULAR_VELOCITY:
     0.0d0]
TUT>  (value *color-value*)
[TURTLESIM-MSG:<COLOR>
   R:
     179
   G:
     184
   B:
     255]

You see that the value of the fluents contain structured data, which contains the pose and color information as provided by the turtlesim simulator.

Let's see if the pose changes if we move the turtle. Start up turtle_teleop_key and move the turtle a little bit using the arrows on your keyboard:

$ rosrun turtlesim turtle_teleop_key

Try evaluating *turtle-pose* in the REPL again:

TUT>  (value *turtle-pose*)
[TURTLESIM-MSG:<POSE>
   X:
     8.339859008789063d0
   Y:
     7.269973278045654d0
   THETA:
     0.9920001029968262d0
   LINEAR_VELOCITY:
     0.0d0
   ANGULAR_VELOCITY:
     0.0d0]

As the pose fluent has been updated, the subscribers seem to work.

Fluents

Now let's play around with fluents a little bit more.

Notice how in the checks before, we used the function (value *turtle-pose*), instead of accessing the variable directly. This is because fluents are proxies, and to get the values we need to use the value function.

Fluents allow us to wait for specific events. For instance, we can wait for the x coordinate of the turtle being smaller than 5:

TUT> (wait-for (< (fl-funcall #'turtlesim-msg:x *turtle-pose*)
                  5.0))

The code above constructs a fluent network. The expression

(fl-funcall #'turtlesim-msg:x *turtle-pose*)

returns a new fluent that contains the x-value of the turtle pose. So from a proxy that wrapped the whole pose of a turtle, we got a new proxy that wraps just the x coordinate. The expression

(< (fl-funcall #'turtlesim-msg:x *turtle-pose*)
   5.0)

returns a fluent that is either T or NIL indicating if the x-coordinate is either smaller or bigger than 5.0. Finally, wait-for waits for the fluent to become T.

Execute the above expression. If the turtle's x position is already smaller than 5, the expression should return T immediately. If not, the expression should block until you move the turtle far enough to the left using the teleop.

Moving the turtle

Let's see if we can also move the turtle from LISP. Try the following:

TUT> (dotimes (i 10) (send-vel-cmd 1 1) (sleep 1))

We use the send-vel-cmd function that we defined in tutorial.lisp. We send the same command 10 times, once every second. The turtle should now move along a circle.

Next

Now that we have functions and fluents to connect to the turtlesim, let's implement some simple plans.
